Emergency rescue and dismantling robot

Product Overview

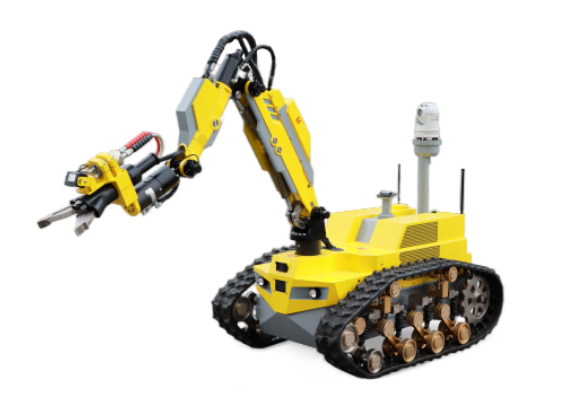

The emergency rescue and dismantling robot consists of the robot body, 6+1-axis hydraulic mechanical arm and hand-held remote control terminal.

 It is mainly used in flammable and explosive environment, and can replace operators to go deep into the accident site for breaking and

dismantling operations, and release operators from the dangerous environment on site, greatly improving the safety of breaking and

dismantling operations, improving work efficiency, reducing labor intensity, and playing an important role in improving the safety level of emergency

 rescue and guaranteeing the safety of rescue personnel.

Product Functions

Function of products

Breaking and dismantling function

The robot is equipped with a highly integrated 6+1-axis hydraulic mechanical arm with strong power and flexible operation.

The working radius is 1.6 m. The expansion tension of the hydraulic clamp at the end is 20 KN, which can cut off the round steel

 with a diameter of 18 mm and meet various complicated breaking operations in multiple angles and directions.

 Autonomous obstacle avoidance function

The robot obstacle avoidance system can automatically identify the distance of obstacles, with large viewing angle and fast response.

Two-way intercom function

It can collect field sound in real time for the convenience  of  understanding  the field environment, and conduct two-way communication

on the field conditions, so as to effectively improve the reliability of emergency rescue.

Image acquisition function

Real-time acquisition of site images and all- around multiangle monitoring provide decision- making basis for emergency decision makers,

 facilitating emergency rescue personnel to plan walking routes and improving emergency rescue efficiency.

Technical Parameter
