RXR-MC120BGD Explosion-proof firefighting and scouting robot

Overview

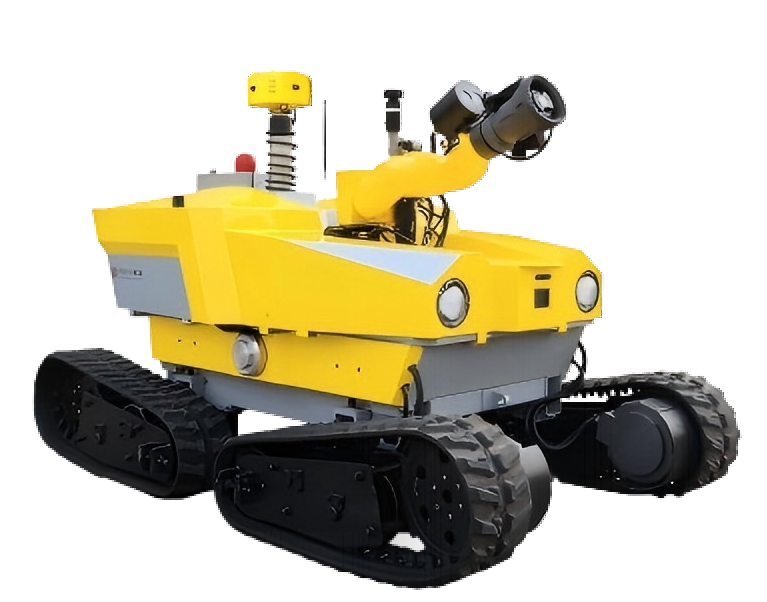

The all terrain tracked firefighting and reconnaissance robot consists of a four track chassis, a fire monitor, and a handheld terminal.

It is mainly used for firefighting and reconnaissance in various fields, especially suitable for flammable and explosive environments

such as petrochemicals and gas. It is of great significance in improving rescue safety and reducing casualties.

Product advantages

●   The design of a four track carrier mechanism has strong off-road capability and good passability. It can easily pass through soft ground,

large slopes, ditches and other obstacles, with a small turning radius and flexible turning. It is not affected by weather, terrain and other factors,

 especially suitable for complex terrains such as water, ice and snow, mud, and potholes;

●    Remote control of fire cannon rotation, pitch or setting any angle, automatic scanning, automatic positioning, and automatic switching of spraying mode;

●    Equipped with a water spray active cooling system, it can achieve mutual conversion between automatic control and manual control;

●    High power servo drive system with strong towing ability for fire hoses;

●    RTK navigation has high positioning accuracy, safe and reliable data, zero error accumulation, and higher flexibility;

●    MESH wireless digital transmission system, with long communication distance and strong anti-interference ability;

●    OFDM and MIMO wireless transmission technology, achieving self-organized networks and multi machine joint control;

●   A bidirectional voice communication system with high sensitivity, low noise, low distortion, and wide monitoring range;

●    High definition video capture system, long-distance video monitoring, flame and smoke recognition;

●   The 360 ° panoramic surround view system can observe the surrounding environment of the robot in real time, without blind spots or dead corners;

●    Binocular vision camera, capable of controlling the robot's forward and backward movements through gestures;

●   Sound source localization function based on microphone array, accurately locating the sound source position;

●    Equipped with various gas detection equipment to meet different on-site needs;

●    Equipped with a millimeter wave radar obstacle avoidance system, it automatically identifies the distance of obstacles, has high sensitivity,

and detects long distances;

●    Equipped with blind spot detection sensors, it can cooperate with the panoramic system to achieve all- round obstacle avoidance

and zero false alarms for the product;

●    High power lighting system, with long auxiliary lighting distance and wide coverage.

Function of products

Ad hoc network function

In an ad hoc network, each node can join and leave the network at any time, and any node failure does not affect the operation of the entire network;

Multiple hop networking can be achieved through the collaboration of various ordinary network nodes, expanding communication distance.

Integrated transmission of graphics and data

The fire extinguishing reconnaissance robot and handheld remote control terminal can achieve point-to-point and point-to-point control through a wireless integrated digital transmission module, and can also add relays in tunnels, highways or underground tunnels to achieve continuous transmission function.

Intelligent recognition function

With a variety of recognition methods including gesture recognition, speech recognition, and flame recognition, the robot can be controlled to operate

through specific gestures. The speech recognition personnel can locate the angle, and the robot can also intelligently recognize on-site flame smoke.

Video surveillance function

The 360 ° airborne surround view system and high-definition camera can achieve all-round and three-dimensional video capture.

Sound source localization function

In complex environments, real-time sound information can be collected on site, and effective sound sources on site can be accurately located,

making it easy to understand the location information of trapped personnel.

Bidirectional voice intercom function

Through a two-way voice communication system, achieve two-way voice intercom between the platform and on-site personnel.

Autonomous obstacle avoidance

The intelligent obstacle avoidance system has a wide detection range, long distance, and large angle, making robot obstacle avoidance more accurate.

At the same time, it also adds channel detection function.

Fire extinguishing function

The fire monitor not only ensures sufficient water flow, but also improves the effective utilization rate of fire water, and the fire water monitor can swing at any angle.

RTK navigation function

According to the principle of relative positioning, the threedimensional coordinates of the robot are calculated in real time.

The robot's walking route is planned by the upper computer, and the robot walks according to the planned route.

RTK can achieve real-time centimeter level positioning in the field, guiding the robot to reach the designated position.

On site rescue

Robots have a certain load capacity and can tow rescue vehicles into disaster sites to promptly rescue trapped individuals.

Environmental detection function (optional)

The automatic lifting platform is equipped with environmental detection sensors to detect and analyze toxic and combustible gases at different heights on site.

Hot eye detection function (optional)

Detecting and tracking heat sources through infrared thermal imaging

If you are interested in this products,please contact us sales@kaichengrobot.com for more technical information.
