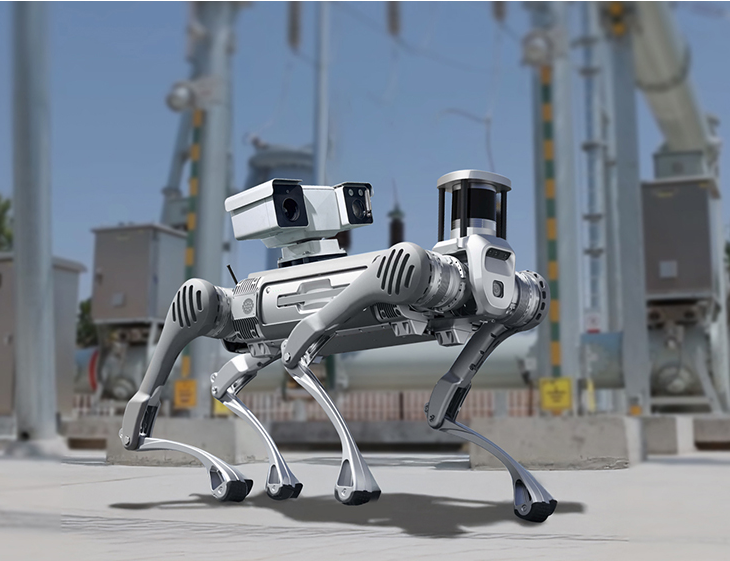

Quadruped inspection robot

Product Overview

Quadruped inspection robot are mainly used in fields such as power inspection, fire protection and emergency rescue, metal smelting and surveying, pipe gallery inspection, factory inspection, etc. They can replace manual work in dangerous and complex environments. The robot adopts the concept of bionics and modular design, and consists of three parts: mechanical motion system, drive and power system, and intelligent perception system. It has multiple functions such as image recognition analysis, infrared detection analysis, environmental detection, and audio analysis.

Product Function

Image acquisition and analysis

Robot intelligently recognizes personnel intrusion, reads pointer instruments, digital display meter data, as well as the status of knobs, rotary rods, valve stems, indicator lights, etc.

Temperature collection and analysis

Can realize the recognition, analysis, and judgment of the temperature status of equipment, pipelines, and key components, and timely alarm for high and low temperature anomalies; Using temperature thermal imaging characteristics, detect temperature trends of key components at different time points.

Environmental detection function

Can be equipped with sensors to detect on-site smoke, CO, NH3, H2S, O2, CO2, and combustible gases.

Audio analysis function

The robot collects real-time sound from the inspection site, identifies abnormal sounds in the field, and alarms.

Autonomous navigation function

Realize autonomous path planning and obstacle avoidance function through multi-sensor fusion navigation positioning algorithm.

Intelligent voice prompt and two-way voice intercom function

If the robot detects abnormalities or its own abnormalities during inspection, it can prompt the user to handle them through voice prompts; The two-way intercom function can achieve remote command of on-site operators' work.

Data archiving and historical query

The monitoring platform automatically archives abnormalinformation or self malfunctions discovered during robot inspection operations and can be viewed at any time.

Self charging function

Automatically stop the current inspection task when the battery level is detected to be below the set value; After the alarm, autonomously run to the charging room and complete the docking work with the charging station for charging.

Product advantages

●   Wide temperature resistance range: It can work in the temperature range of -20 ℃ to 55 ℃ and adapt to extreme climates such as severe cold and high temperature.

●    Excellent terrain adaptability: able to walk stably in complex terrains such as deserts, snow, swamps, and pipe tunnels, and even cross muddy and slippery roads.

●    Excellent protection performance: It has IP67 dust and water resistance, which can resist the intrusion of rainwater, dust, and other substances, Suitable for long-term use in outdoor or industrial settings.

●    Excellent athletic performance: can quickly overcome obstacles, climb up and down stairs and hollow industrial stairs, and respond to sudden tasks in the first time.

●    Unique perceptual ability: Unique fusion perceptual ability, capable of autonomous navigation and operation in extreme environments with varying or even no light. Equipped with interactive light language function, it can provide feedback on the operation of the device to the staff, and can also safely avoid obstacles for random dynamic objects.

●    Intelligent motion assistance: It has the functions of self standing and self anti tipping when falling, and can dynamically stop obstacles when encountering them, ensuring stability in complex environments.

●    Excellent battery life: The battery supports quick on- site replacement, and a self charging solution based on fusion positioning ensures smooth and efficient charging.

Technical parameters

Please feel free to contact us sales@kaichengrobot.com to get more information about this four legged inspection robot.
