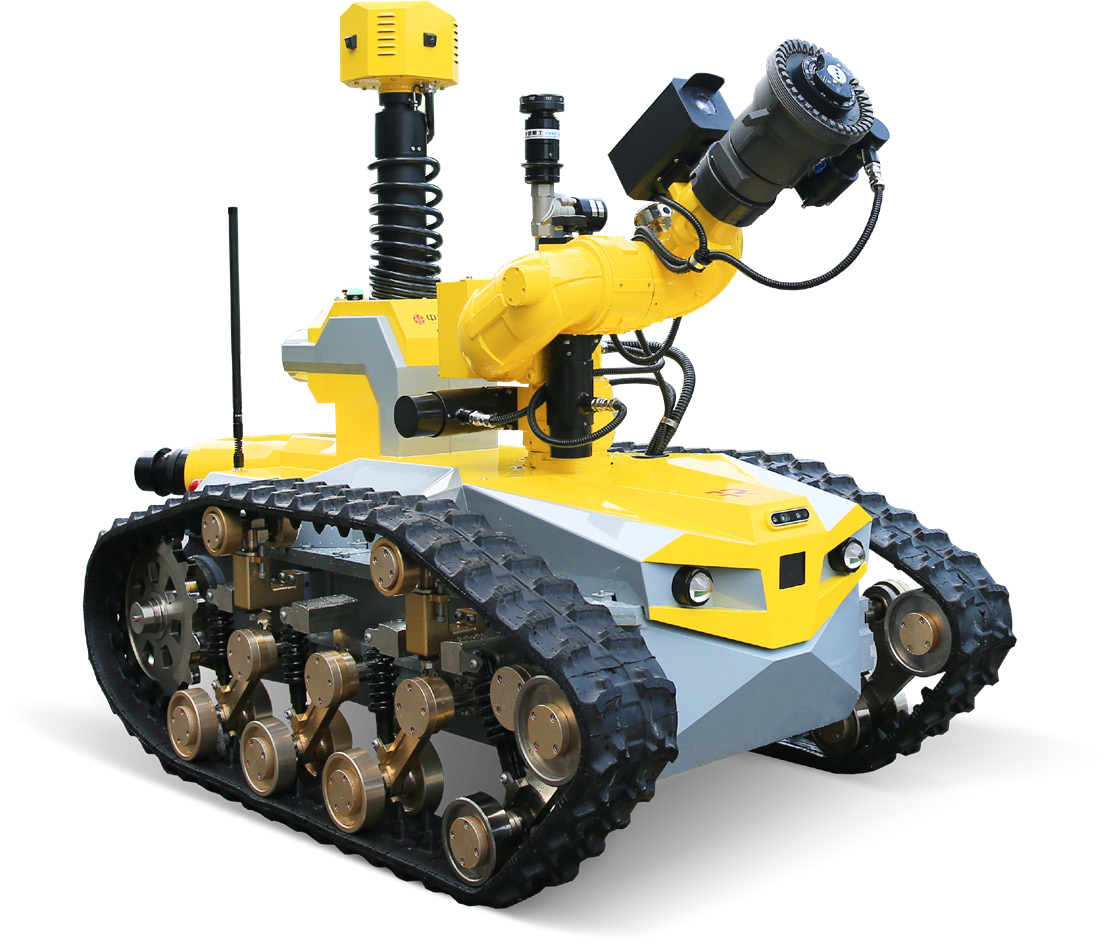

RXB-MC80BD Firefighting and scouting robot

Product Overview

RXB-MC80BD Fire fghting and scouting robot consists of robot body, monitor and remote control terminal. It is mainly used for fre fghting and

scouting in various felds, especially for petrochemical, gas and other explosive environments, which is of great signifcance for improving

rescue safety and reducing casualties.

Product advantages

●Crawler carrier mechanism design, large load capacity, strong obstacle-surmounting ability, adaptability to complex environment and terrain;

● Remote control the monitor to rotate, pitch or set any angle, automatically shoot, automatically return to its position,

 and automatically switch the spraying mode;

● Equipped with self-cooling system, which can realize the mutual conversion between automatic control and manual control;

● High-power servo drive system, strong dragging ability of fire hose;

● MESH wireless digital transmission system, long communication distance and strong anti-interference;

● OFDM and MIMO wireless transmission technology to realize ad hoc network and multi-robot joint control;

● Two-way voice communication system, featuring high sensitivity, low noise, low distortion and wide monitoring range;

● High-definition video capture system, remote video monitoring, flame and smoke identification;

●The 360° panoramic view system can observe the surrounding environment of the robot in real time, without blind spots and dead angles;

● Binocular vision camera, which can gesture to control the robot to move forward and backward;

●Accurately locate the sound source position based on the sound source positioning function of microphone array;

● Equipped with millimeter wave radar obstacle avoidance system, it can automatically identify obstacle distance,

with high sensitivity and long detection distance;

●The high-power lighting system can automatically adjust the brightness, with long auxiliary lighting distance and wide coverage;

●The remote control terminal is light in weight, reasonable in key layout, fast in operation and easy to operate.

Function of products

Ad hoc networking function

 Each node in the ad hoc network can join and leave the network at any time, and any node failure will not affect the operation of the whole network. All common network nodes can cooperate to complete multi-hop networking, and expand the communication distance.

Dital and data integrated transmission

Fire-fighting robot and remote control terminal can realize point-to-point and point-to-multi point control mode through wireless digital transmission module, and can also add relays in tunnel roads or underground tunnels to realize continuous transmission.

Intelligent identification function

Diversified recognition methods of gesture recognition, speech recognition and flame recognition.

It can control the operation of the robot through specific gestures and speaking, and the robot can intelligently recognize the scene flame smoke.

Video monitoring function

360° airborne panoramic camera and zoom HD camera can realize all-round and three- dimensional video capture.

Sound source positioning function

In a complex environment, it can collect the sound information of the scene in real time, and accurately locate the effective sound source on the scene,

 which is convenient to know the location information of the trapped people.

Two-way voice intercom function

Through the two-way voice communication system, the two-way voice intercom between the platform and the field personnel is realized.

GPS function

Locate the robot's current map position at any time, and record the movement trend and trajectory in a period of time.

Autonomous obstacle avoidance function

Wide detection range, long distance and large angle, and the robot can avoid obstacles more accurately. At the same time,

 it also adds the channel detection function.

Fire extinguishing function

The monitor not only ensures the sufficient supply of water flow, but also improves the effective utilization rate of fire water,

and the monitor can swing at any angle.

Automatic power generation and recoil suppression function

The main motor of the robot adopts power generation braking, and the recoil force is converted into electric energy in sprinkler fire extinguishing.

Site rescue

The robot has a certain load capacity, and can drag rescue vehicles into the disaster site to rescue trapped people in time.

Environmental detection function (optional)

The automatic lifting platform is equipped with environmental detection sensors to realize the detection and analysis of toxic and

flammable gas at different heights on the site (radioactive substance detection is optional).

Heat eye detection function (optional)

Detection and tracking of heat source by infrared thermal imaging.

Emergency transportation plan (optional)

Robot trailer transports 1 robot.

Robot special transport vehicle transports 4 robots.

Field application

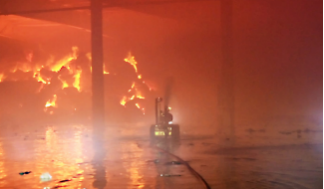

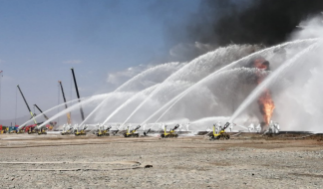

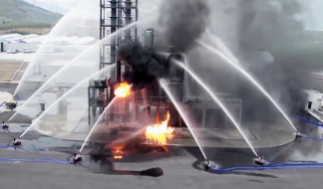

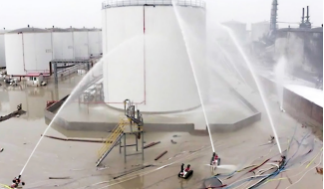

     ●  Firefighting robot                                         ●  Firefighting and rescue in oil tank farm

 ●  Firefighting and rescue in oil pipeline area   ●    Firefighting and rescue in cotton factory

If you are interested in this firefighting and scouting robot,please contact us at sales@kaichengrobot.com for more technical information.
